Chat - Messages #

Again! This guide is based on Flutter Tutorial: building a Flutter chat app. I’m making my own version to better fit the narrative I want to convey in this book.

Introduction #

In the previous part of the chat app series, we’ve implemented password based authentication with a login and a register page. In this part we will extend the project, so you can send and receive messages from other users. You know, to make it an actual chat app.

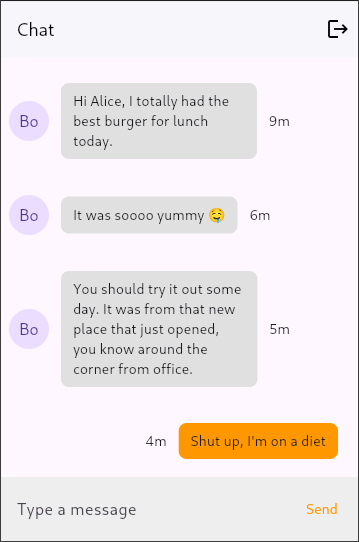

Screenshot of chat page

Open your project from last part or download the reference solution. For the reference solution make sure you are on the “authentication” branch.

Let’s get started!

Supabase project #

Before writing any new Flutter code - there are just a couple of small changes to be made to the project in Supabase.

Change the schema #

We are going to extend the schema with an additional table for messages.

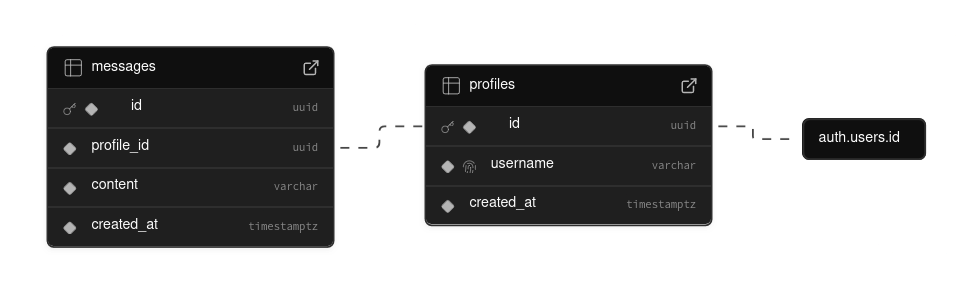

Visualization of schema What the resulting schema will look like.

Open Supabase dashboard
Navigate to your project
Go to “SQL Editor”
Run the following SQL

create table if not exists public.messages (
    id uuid not null primary key default gen_random_uuid(),
    profile_id uuid default auth.uid() references public.profiles(id) on delete cascade not null,
    content varchar(500) not null,
    created_at timestamp with time zone default timezone('utc' :: text, now()) not null
);
comment on table public.messages is 'Holds individual messages sent on the app.';

Real-time query #

Supabase supports real-time queries. It allows clients to listen for changes on query result, so it gets notified when a row in the result change. No more hitting refresh or periodic polling for your app to fetch fresh data as you would with plain HTTP. Just listen on a result set and then changes will automatically get pushed to your app.

To use the real-time functionality we need to first enable it. This is done on a per-table basis.

Run the following in “SQL Editor”.

-- *** Add tables to the publication to enable real time subscription ***
alter publication supabase_realtime add table public.messages;

It can also be enabled with a from the Supabase dashboard.

Implement chat #

Now for the implementation in Flutter. Open up your project.

Models and mapping #

We need to add a couple of model classes that match the database tables. I think the simplest way is to do it is to use dart_mappable.

Add the package.

flutter pub add dart_mappable
flutter pub add build_runner --dev
flutter pub add dart_mappable_builder --dev

Then define the models.

lib/models/massage.dart

import 'package:dart_mappable/dart_mappable.dart';

part 'message.mapper.dart';

@MappableClass()
class Message with MessageMappable {
  final String id;
  final String profileId;
  final String content;
  final DateTime createdAt;

  Message({
    required this.id,
    required this.profileId,
    required this.content,
    required this.createdAt,
  });
}

lib/models/profile.dart

import 'package:dart_mappable/dart_mappable.dart';

part 'profile.mapper.dart';

@MappableClass()
class Profile with ProfileMappable {
  final String id;
  final String username;
  final DateTime createdAt;

  Profile({required this.id, required this.username, required this.createdAt});
}

Simple enough right? Hold on, there is one small caveat we need to work around. The data we get from Supabase use snake_case for column names. And the naming convention for Dart is lowerCamelCase. It creates an issue since the two styles don’t match. We can solve it by instructing dart_mappable to use a different case style for the mapper it generates.

Create a file lib/models/models.dart with:

import 'package:dart_mappable/dart_mappable.dart';

const caseStyle = CaseStyle(
  head: TextTransform.lowerCase,
  tail: TextTransform.lowerCase,
  separator: '_',
);

Now that we are at it. We could also add some exports for the models which will allow us to import both with just a single import statement. Just add these two lines to the top of the file.

export 'message.dart';
export 'profile.dart';

Now you can import both models with just import 'package:chat/models/models.dart';, instead of import 'package:chat/models/massage.dart'; and import 'package:chat/models/profile.dart';. Neat, right?

Replace @MappableClass() in each of the models with @MappableClass(caseStyle: caseStyle), so it will use our newly defined case style.

Then generate the mappers with:

flutter pub run build_runner build

Service #

Now that we have our models we can extend our Supabase abstraction with some methods for streaming messages, fetching profiles and submitting new messages. Add these method definitions to ChatService.

  Stream<List<Message>> messageStream();
  Future<void> submitMessage(String text);
  Future<Profile> fetchProfile(String id);

And implement them in SupabaseChatService.

  @override
  Stream<List<Message>> messageStream() {
    return _supabase
        .from('messages')
        .stream(primaryKey: ['id'])
        .order('created_at')
        .map((maps) => maps.map((map) => MessageMapper.fromMap(map)).toList());
  }

  @override
  Future<void> submitMessage(String text) async {
    final myUserId = _supabase.auth.currentUser!.id;
    await _supabase.from('messages').insert({
      'profile_id': myUserId,
      'content': text,
    });
  }

  @override
  Future<Profile> fetchProfile(String id) async {
    final data =
        await _supabase.from('profiles').select().eq('id', id).single();
    return ProfileMapper.fromMap(data);
  }

Cubit #

You’ve guessed it. We are going to use a cubit again.

This will be the state.

lib/chat/chat_state.dart

import '../models/models.dart';

class ChatState {
  final List<Message> messages;
  final Map<String, Profile> profileCache;
  final String? error;

  ChatState({required this.messages, required this.profileCache, this.error});

  ChatState.empty() : messages = [], profileCache = {}, error = null;

  ChatState copyWith({
    List<Message>? messages,
    Map<String, Profile>? profileCache,
    String? error,
  }) => ChatState(
    messages: messages ?? this.messages,
    profileCache: profileCache ?? this.profileCache,
    error: error ?? this.error,
  );

  Profile? profileFor(Message message) => profileCache[message.profileId];
}

A message references the profile that sent it. In a conversation you will have many messages send from the same profile. You can easily join a message with a profile in a query. But, you can not use join when streaming changes from a table. We therefore have a cache of profiles in the state object. That way, profiles can be lazy loaded as new messages arrive. We can also check the cache to avoid loading the same profile multiple times. Smart, right?

lib/chat/chat_cubit.dart

import 'dart:async';

import 'package:flutter_bloc/flutter_bloc.dart';

import '../common/chat_service.dart';
import '../common/widgets.dart';
import '../models/models.dart';
import 'chat_state.dart';

class ChatCubit extends Cubit<ChatState> {
  final ChatService service;
  StreamSubscription<List<Message>>? _messageSubscription;

  ChatCubit(this.service) : super(ChatState.empty());

  void listenForMessage() {
    service.messageStream().listen((messages) {
      emit(state.copyWith(messages: messages));
      for (var message in messages) {
        _loadProfileCache(message.profileId);
      }
    }, onError: (e) => state.copyWith(error: e.toString()));
  }

  void submitMessage(String text) async {
    if (text.isEmpty) return;
    try {
      service.submitMessage(text);
    } on Exception catch (error) {
      emit(state.copyWith(error: error.toString()));
    } catch (_) {
      emit(state.copyWith(error: unexpectedErrorMessage));
    }
  }

  @override
  Future<void> close() {
    _messageSubscription?.cancel();
    return super.close();
  }

  Future<void> _loadProfileCache(String profileId) async {
    if (state.profileCache[profileId] != null) return;
    final profile = await service.fetchProfile(profileId);
    emit(
      state.copyWith(profileCache: {...state.profileCache, profileId: profile}),
    );
  }
}

listenForMessage() will subscribe to messages using the ChatService. It returns a StreamSubscription object. Note: We are supposed to cancel subscriptions when the cubit gets closed. If forgotten, it creates a memory leak.

For each new message the cache is checked for a profile. If none is found, then it will fetch the profile and append it to the cache. The cache is really just a map of profile ID to profile. We create a new instance of the map each time a new profile is fetched, because states are supposed to be immutable. There is a slight overhead to creating new map instances, so this implementation is not viable if there are millions of people chatting at the same time. Premature optimization is the enemy of quick progress. So lets just assume the app won’t get millions of users overnight and move on.

Widgets #

The time has finally come where we can start the actual implementation of the ChatPage. Aiming for a layout like on the picture.

Screenshot of chat page

We need to create a couple of widgets to achieve it.

Chat bubble #

We are going to add timeago package, so we can easily show how long it has been since a message was submitted.

flutter pub add timeago

lib/chat/chat_bubble.dart

import 'package:flutter/material.dart';
import 'package:provider/provider.dart';

import 'package:timeago/timeago.dart';

import '../common/chat_service.dart';
import '../common/widgets.dart';
import '../models/models.dart';

class ChatBubble extends StatelessWidget {
  final Message message;
  final Profile? profile;

  const ChatBubble({super.key, required this.message, required this.profile});

  static const space = SizedBox(width: 12);
  static const sideSpace = SizedBox(width: 60);

  @override
  Widget build(BuildContext context) {
    final isMine = context.read<ChatService>().userId == message.profileId;
    return Padding(
      padding: const EdgeInsets.symmetric(horizontal: 8, vertical: 18),
      child: isMine ? _buildMine(context) : _buildOther(context),
    );
  }

  Widget _buildMine(BuildContext context) {
    return Row(
      mainAxisAlignment: MainAxisAlignment.end,
      children: [
        sideSpace,
        timeAgo,
        space,
        text(color: Theme.of(context).primaryColor),
        space,
      ],
    );
  }

  Widget _buildOther(BuildContext context) {
    return Row(
      mainAxisAlignment: MainAxisAlignment.start,
      children: [
        avatar,
        space,
        text(color: Colors.grey[300]!),
        space,
        timeAgo,
        sideSpace,
      ],
    );
  }

  Widget text({required Color color}) {
    return Flexible(
      child: Container(
        padding: const EdgeInsets.symmetric(vertical: 8, horizontal: 12),
        decoration: BoxDecoration(
          color: color,
          borderRadius: BorderRadius.circular(8),
        ),
        child: Text(message.content),
      ),
    );
  }

  Widget get timeAgo => Text(format(message.createdAt, locale: 'en_short'));
  Widget get avatar => CircleAvatar(
    child:
        profile == null ? Spinner() : Text(profile!.username.substring(0, 2)),
  );
}

Show a spinner until it has the profile fetched, in which case an avatar is shown.

Layout of the bubble is reverse if it is your own message.

Message bar #

lib/chat/message_bar.dart

import 'package:flutter/material.dart';
import 'package:flutter_bloc/flutter_bloc.dart';

import 'chat_cubit.dart';

/// Set of widget that contains TextField and Button to submit message
class MessageBar extends StatefulWidget {
  const MessageBar({super.key});

  @override
  State<MessageBar> createState() => _MessageBarState();
}

class _MessageBarState extends State<MessageBar> {
  final _textController = TextEditingController();

  @override
  void dispose() {
    _textController.dispose();
    super.dispose();
  }

  void _submitMessage() async {
    final text = _textController.text;
    if (text.isEmpty) return;
    _textController.clear();
    context.read<ChatCubit>().submitMessage(text);
  }

  @override
  Widget build(BuildContext context) {
    return Material(
      color: Colors.grey[200],
      child: SafeArea(
        child: Padding(
          padding: const EdgeInsets.all(8.0),
          child: Row(
            children: [
              Expanded(
                child: TextFormField(
                  keyboardType: TextInputType.text,
                  maxLines: null,
                  autofocus: true,
                  controller: _textController,
                  decoration: const InputDecoration(
                    hintText: 'Type a message',
                    border: InputBorder.none,
                    focusedBorder: InputBorder.none,
                    contentPadding: EdgeInsets.all(8),
                  ),
                ),
              ),
              TextButton(
                onPressed: () => _submitMessage(),
                child: const Text('Send'),
              ),
            ],
          ),
        ),
      ),
    );
  }
}

Chat page #

Now we’ll build the screen/page that shows the chat bubbles.

lib/chat/chat_page.dart

import 'package:chat/common/widgets.dart';
import 'package:flutter/material.dart';
import 'package:flutter_bloc/flutter_bloc.dart';

import '../account/register/register_page.dart';
import '../common/chat_service.dart';
import 'chat_bubble.dart';
import 'chat_cubit.dart';
import 'chat_state.dart';
import 'message_bar.dart';

/// Page to chat with someone.
///
/// Displays chat bubbles as a ListView and TextField to enter new chat.
class ChatPage extends StatelessWidget {
  const ChatPage({super.key});

  static Route<void> route() {
    return MaterialPageRoute(builder: (context) => const ChatPage());
  }

  @override
  Widget build(BuildContext context) {
    return BlocProvider(
      create: (_) => ChatCubit(context.read<ChatService>())..listenForMessage(),
      child: Scaffold(
        appBar: AppBar(
          title: const Text('Chat'),
          actions: [
            IconButton(
              onPressed: () {
                context.read<ChatService>().logout();
                Navigator.of(
                  context,
                ).pushAndRemoveUntil(RegisterPage.route(), (route) => false);
              },
              icon: Icon(Icons.logout),
            ),
          ],
        ),
        body: Column(
          children: [
            Expanded(
              child: BlocConsumer<ChatCubit, ChatState>(
                listener: (context, state) {
                  if (state.error != null) {
                    context.showErrorSnackBar(message: state.error!);
                  }
                },
                builder: (context, state) {
                  if (state.messages.isEmpty) {
                    return const Center(
                      child: Text('Start your conversation now :)'),
                    );
                  }
                  return ListView.builder(
                    reverse: true,
                    itemCount: state.messages.length,
                    itemBuilder: (context, index) {
                      final message = state.messages[index];
                      return ChatBubble(
                        message: message,
                        profile: state.profileFor(message),
                      );
                    },
                  );
                },
              ),
            ),
            const MessageBar(),
          ],
        ),
      ),
    );
  }
}

In create function given to BlocProvider, we call listenForMessage() immediately using cascade-notation. The listenForMessage() method is what makes the ChatCubit subscribe to messages. Without the call we would not see anything.

Outro #

Reveal solution

Go to source

People can now use the app to write messages. But anyone can see messages from anyone. Publishing an app like that would quickly get a huge spam issue. In the next part we’ll fix it by changing the app to support one-to-one communication via direct messages (DMs).
