Chat - Authorization #

This guide is based on Flutter Authorization with RLS. I’m making my own version to better fit the narrative I want to convey in this book.

Introduction #

Currently, the chat is open for everyone. If you put an app like this on the app store then within long the chat would be flooded with horrible things. You know like scammers, drug dealers, bots and people writing about what they had for lunch.

The app needs private chat rooms, so people have meaningful conversations in peace. All the important stuff in life, like how to defeat Gwyn in Dark Souls and so on.

To make sure people not invited can’t access private rooms, we will utilize a feature in Supabase called Row Level Security (RLS). It allows us to create policies for who can access what at the database level.

To learn more about Row Level Security watch this.

Those silly full-stack developers, spending so much time coding back-ends. All they need is Postgres (and Supabase). If you think about it - most back-ends are just fancy wrappers around a database. Supabase is a generic feature rich wrapper, that you can customize for many different kinds of projects 🤯.

Of course, I’m kidding here. There is definitely a need for a back-end in many situations.

Schema changes #

To make private chat rooms work, we need to customize the schema a bit. We need to introduce a new rooms table. Run the following from SQL Editor for your project in Supabase Dashboard.

-- *** Table definitions ***

create table if not exists public.rooms (
    id uuid not null primary key default gen_random_uuid(),
    created_at timestamp with time zone default timezone('utc' :: text, now()) not null
);
comment on table public.rooms is 'Holds chat rooms';

create table if not exists public.room_participants (
    profile_id uuid references public.profiles(id) on delete cascade not null,
    room_id uuid references public.rooms(id) on delete cascade not null,
    created_at timestamp with time zone default timezone('utc' :: text, now()) not null,
    primary key (profile_id, room_id)
);
comment on table public.room_participants is 'Relational table of users and rooms.';

Next, we need to alter messages table, so it references a room. If you have any existing messages in the database they won’t have a room_id, so we need to delete those.

delete from messages where 1 = 1;

alter table public.messages
add column room_id uuid references public.rooms(id) on delete cascade not null;

We also need to enable real-time changes for the new rooms table.

alter publication supabase_realtime add table public.room_participants;

Finally, we add a database function to create a new room with both the current user and another user as participants.

-- Creates a new room with the user and another user in it.
-- Will return the room_id of the created room
-- Will return a room_id if there were already a room with those participants
create or replace function create_new_room(other_user_id uuid) returns uuid as $$
    declare
        new_room_id uuid;
    begin
        -- Check if room with both participants already exist
        with rooms_with_profiles as (
            select room_id, array_agg(profile_id) as participants
            from room_participants
            group by room_id
        )
        select room_id
        into new_room_id
        from rooms_with_profiles
        where create_new_room.other_user_id=any(participants)
        and auth.uid()=any(participants);


        if not found then
            -- Create a new room
            insert into public.rooms default values
            returning id into new_room_id;

            -- Insert the caller user into the new room
            insert into public.room_participants (profile_id, room_id)
            values (auth.uid(), new_room_id);

            -- Insert the other_user user into the new room
            insert into public.room_participants (profile_id, room_id)
            values (other_user_id, new_room_id);
        end if;

        return new_room_id;
    end
$$ language plpgsql security definer;

Authorization with Row Level Security (RLS) #

To make writing our RLS policies a bit easier, we are going to create a small helper function to check if the current signed-in users is a participant of the room.

-- Returns true if the signed-in user is a participant of the room
create or replace function is_room_participant(room_id uuid)
returns boolean as $$
  select exists(
    select 1
    from room_participants
    where room_id = is_room_participant.room_id and profile_id = auth.uid()
  );
$$ language sql security definer;

Let’s enable RLS for our tables and define policies for them.

-- *** Row level security policies ***

alter table public.profiles enable row level security;
create policy "Public profiles are viewable by everyone."
  on public.profiles for select using (true);


alter table public.rooms enable row level security;
create policy "Users can view rooms that they have joined"
  on public.rooms for select using (is_room_participant(id));


alter table public.room_participants enable row level security;
create policy "Participants of the room can view other participants."
  on public.room_participants for select using (is_room_participant(room_id));


alter table public.messages enable row level security;
create policy "Users can view messages on rooms they are in."
  on public.messages for select using (is_room_participant(room_id));
create policy "Users can insert messages on rooms they are in."
  on public.messages for insert with check (is_room_participant(room_id) and profile_id = auth.uid());

The syntax for creating policies is create policy <description> on <table> for <action> <condition>. Where <description> is a human-readable description of what the policy does. <table> is of course the table that the policy should apply to. <action> is the SQL CRUD operation (select, insert, update or delete). Last, <condition> specifies under what condition the action is allowed.

When enabling RLS for a table then all actions on any rows of that table are denied. You will need to explicitly define policies that allow certain actions again under certain conditions.

Models #

Moving over to the Flutter side. Since we’ve added new tables to the database we also need to define a couple of more models to match.

lib/models/room.dart

import 'package:dart_mappable/dart_mappable.dart';

import 'models.dart';

part 'room.mapper.dart';

@MappableClass(caseStyle: caseStyle)
class Room with RoomMappable {
  final String id;
  final DateTime createAt;
  final String otherUserId;
  final Message lastMessage;

  Room({
    required this.id,
    required this.createAt,
    required this.otherUserId,
    required this.lastMessage,
  });
}

lib/models/room_participant.dart

import 'package:dart_mappable/dart_mappable.dart';

import 'models.dart';

part 'room_participant.mapper.dart';

@MappableClass(caseStyle: caseStyle)
class RoomParticipant with RoomParticipantMappable {
  final String profileId;
  final String roomId;
  final DateTime createdAt;

  RoomParticipant({
    required this.profileId,
    required this.roomId,
    required this.createdAt,
  });
}

For the sake of being consistent, we should also add exports for the new models to the top of lib/models/models.dart.

export 'room.dart';
export 'room_participant.dart';

Remember that you need to run code generation to create the mapping code. Open a terminal in your project folder and run:

flutter pub run build_runner build

Delete previous output if you get asked about it.

Service #

We should also adjust our abstraction service to match the new stuff we’ve added to the database.

Open chat_service.dart and add the following to the ChatService abstract class.

  Stream<List<RoomParticipant>> participantStream();
  Stream<Message?> lastMessageStream(String roomId);
  Future<String> startConversation(String otherUserId);
  Future<List<Profile>> searchProfile(String text);

And add the following implementation to SupabaseChatService.

  @override
  Stream<List<RoomParticipant>> participantStream() {
    return _supabase
        .from('room_participants')
        .stream(primaryKey: ['room_id', 'profile_id'])
        .map(
          (maps) =>
              maps.map((map) => RoomParticipantMapper.fromMap(map)).toList(),
        );
  }

  @override
  Stream<Message?> lastMessageStream(String roomId) {
    return _supabase
        .from('messages')
        .stream(primaryKey: ['id'])
        .eq('room_id', roomId)
        .order('created_at')
        .limit(1)
        .map((maps) => maps.isEmpty ? null : MessageMapper.fromMap(maps.first));
  }

  @override
  Future<String> startConversation(String otherUserId) async {
    final roomId = await _supabase.rpc(
      'create_new_room',
      params: {'other_user_id': otherUserId},
    );
    return roomId;
  }

  @override
  Future<List<Profile>> searchProfile(String text) async {
    return _supabase
        .from('profiles')
        .select()
        .textSearch('username', text)
        .limit(12)
        .order('username')
        .withConverter(
          (profiles) => profiles.map(ProfileMapper.fromMap).toList(),
        );
  }

After login/registration the user will be presented with a list of rooms representing previous conversations they have had. They will also be given the ability to start a new conversation (create a new room) with another user by searching for their name.

The participantStream() method returns a stream of participants. The RLS policy restricts the result to only participants in rooms for which the current user is also a participant of.

The lastMessageStream() returns a stream with the latest message that have been submitted in a given room.

We can use startConversation() to start a new conversation calling the create_new_room database function. We will use searchProfile() to search for users to start a conversation with.

RPC is short for Remote Procedure Call, which is general term for calling a function (aka procedure) on another computer or process in a distributed system.

Overview of conversations #

We need to add a new page from where the user can select a room.

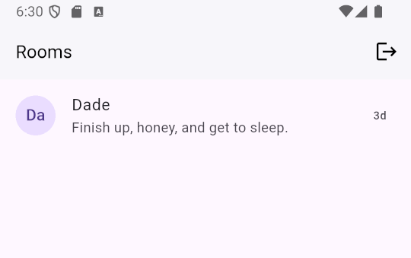

Screenshot of RoomsPage

We will use the cubit pattern as usual.

Rooms state #

We start by defining the state.

lib/rooms/rooms_state.dart

import '../models/models.dart';

sealed class RoomsState {}

final class RoomsLoading extends RoomsState {}

final class RoomsError extends RoomsState {
  final String message;
  RoomsError(this.message);
}

final class RoomsLoaded extends RoomsState {
  final List<RoomAggregate> rooms;

  RoomsLoaded({required this.rooms});

  RoomsLoaded withRoomUpdate(
    bool Function(RoomAggregate friend) which,
    RoomAggregate Function(RoomAggregate friend) update,
  ) {
    final newRooms = [...rooms];
    final index = newRooms.indexWhere(which);
    if (index < 0) this;
    newRooms[index] = update(newRooms[index]);
    newRooms.sort((a, b) => a.timestamp.compareTo(b.timestamp));
    return RoomsLoaded(rooms: newRooms);
  }
}

class RoomAggregate {
  final String roomId;
  final String profileId;
  final DateTime timestamp;
  final Message? lastMessage;
  final Profile? profile;

  RoomAggregate({
    required this.roomId,
    required this.profileId,
    required this.timestamp,
    this.lastMessage,
    this.profile,
  });

  RoomAggregate copyWith({Message? lastMessage, Profile? profile}) =>
      RoomAggregate(
        roomId: roomId,
        profileId: profileId,
        timestamp: lastMessage?.createdAt ?? timestamp,
        lastMessage: lastMessage ?? this.lastMessage,
        profile: profile ?? this.profile,
      );
}

To build a nice UX we need information across multiple tables. We use RoomAggregate to hold all this information.

The RoomLoaded state has a helper method which will make a copy of the state, but with a change to a single RoomAggregate. It just makes it slightly more convenient when we get around to write the code to handle adding, removing and updating rooms. More on that later.

Rooms cubit #

Then for the cubit.

lib/rooms/rooms_cubit.dart

import 'dart:async';

import 'package:chat/common/chat_service.dart';
import 'package:chat/common/widgets.dart';
import 'package:chat/models/message.dart';
import 'package:flutter_bloc/flutter_bloc.dart';

import '../models/room_participant.dart';
import 'rooms_state.dart';

class RoomsCubit extends Cubit<RoomsState> {
  final ChatService _service;

  late StreamSubscription<List<RoomParticipant>> _participantSubcription;
  final Map<String, StreamSubscription<Message?>> _lastMessageSubscription = {};

  RoomsCubit(this._service) : super(RoomsLoading());

  Future<void> initialize() async {
    _participantSubcription = _service.participantStream().listen(
      (participants) {
        final rooms =
            participants
                .where(
                  (participant) => participant.profileId != _service.userId,
                )
                .map(
                  (participant) => RoomAggregate(
                    roomId: participant.roomId,
                    profileId: participant.profileId,
                    timestamp: participant.createdAt,
                  ),
                )
                .toList();
        emit(RoomsLoaded(rooms: rooms));
        for (final room in rooms) {
          _getLastMessage(room.roomId);
          _getProfile(room.profileId);
        }
      },
      onError: (_) {
        emit(RoomsError(unexpectedErrorMessage));
      },
    );
  }

  @override
  Future<void> close() async {
    Future.wait([
      _participantSubcription.cancel(),
      ..._lastMessageSubscription.values.map((sub) => sub.cancel()),
    ]);
    return super.close();
  }

  Future<void> startConversation(String otherUserId) async {
    await _service.startConversation(otherUserId);
  }

  void _getLastMessage(String roomId) {
    _lastMessageSubscription[roomId] = _service
        .lastMessageStream(roomId)
        .listen((message) {
          if (state is! RoomsLoaded) return;
          final newState = (state as RoomsLoaded).withRoomUpdate(
            (room) => room.roomId == roomId,
            (room) => room.copyWith(lastMessage: message),
          );
          emit(newState);
        });
  }

  Future<void> _getProfile(String profileId) async {
    final profile = await _service.fetchProfile(profileId);
    if (state is! RoomsLoaded) return;
    final newState = (state as RoomsLoaded).withRoomUpdate(
      (room) => room.profileId == room.profileId,
      (room) => room.copyWith(profile: profile),
    );
    emit(newState);
  }
}

The initialize() method will listen for changes for rooms in real-time. For each room it will fetch the last message and profile (username) of the other user. Notice how the .withRoomUpdate() helper method is being used.

Whenever working with subscriptions it is very important that we cancel it again when no longer needed. Otherwise, your application will leak resources over time. Here we cancel the subscription when the cubit is closed. This will happen when its BlocProvider is no longer part of the widget tree.

Rooms page #

lib/rooms/rooms_page.dart

import 'package:chat/common/chat_service.dart';
import 'package:chat/common/widgets.dart';
import 'package:flutter/material.dart';
import 'package:flutter_bloc/flutter_bloc.dart';
import 'package:timeago/timeago.dart';

import '../chat/chat_page.dart';
import 'rooms_cubit.dart';
import 'rooms_state.dart';

class RoomsPage extends StatelessWidget {
  const RoomsPage({super.key});

  static Route<void> route() {
    return MaterialPageRoute(
      builder:
          (context) => BlocProvider<RoomsCubit>(
            create:
                (context) =>
                    RoomsCubit(context.read<ChatService>())..initialize(),
            child: const RoomsPage(),
          ),
    );
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('Rooms')),
      body: BlocBuilder<RoomsCubit, RoomsState>(
        builder: (context, state) {
          if (state is RoomsLoading) {
            return Spinner();
          } else if (state is RoomsError) {
            return Center(child: Text(state.message));
          } else if (state is RoomsLoaded && state.rooms.isEmpty) {
            return Column(
              children: [
                const Expanded(
                  child: Center(
                    child: Text('Start a chat by tapping on available users'),
                  ),
                ),
              ],
            );
          } else if (state is RoomsLoaded && state.rooms.isNotEmpty) {
            return ListView.builder(
              itemCount: state.rooms.length,
              itemBuilder: (context, index) {
                final room = state.rooms[index];
                final name = room.profile?.username;
                final lastMessage = room.lastMessage;
                return ListTile(
                  onTap:
                      () => Navigator.of(
                        context,
                      ).push(ChatPage.route(roomId: room.roomId)),
                  leading: CircleAvatar(
                    child:
                        name == null ? Spinner() : Text(name.substring(0, 2)),
                  ),
                  title: Text(name ?? 'Loading...'),
                  subtitle: Text(
                    lastMessage?.content ?? 'Room created',
                    maxLines: 1,
                    overflow: TextOverflow.ellipsis,
                  ),
                  trailing: Text(format(room.timestamp, locale: 'en_short')),
                );
              },
            );
          }
          throw UnimplementedError("$state");
        },
      ),
    );
  }
}

For the RoomsLoaded state it builds a ListView of rooms. To make it nice and user-friendly it shows an avatar for the username from profile table, as well as the last messages for messages table. That’s why we needed the RoomAggregate class.

Logout #

I think it is fitting to place a logout button on the RoomsPage instead of having it on ChatPage.

Create the file lib/rooms/logout_button.dart with:

import 'package:flutter/material.dart';
import 'package:provider/provider.dart';

import '../account/register/register_page.dart';
import '../common/chat_service.dart';

class LogoutButton extends StatelessWidget {
  const LogoutButton({super.key});

  @override
  Widget build(BuildContext context) {
    return IconButton(
      onPressed: () {
        context.read<ChatService>().logout();
        Navigator.of(
          context,
        ).pushAndRemoveUntil(RegisterPage.route(), (route) => false);
      },
      icon: Icon(Icons.logout),
    );
  }
}

Then add actions: [LogoutButton()] as parameter to the AppBar in lib/rooms/rooms_page.dart.

Finally, remove the existing logout button from the AppBar in lib/chat/chat_page.dart.

Room specific chat #

When tapping on a room we want the chat messages for only that particular room to be shown.

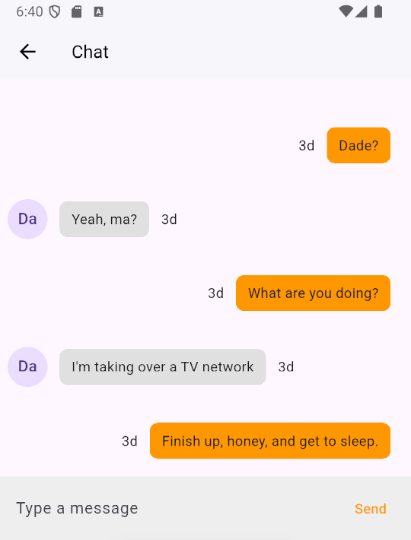

Screenshot of ChatPage

To accomplish this we need to make some changes to the ChatPage and related classes.

Open lib/chat/chat_page.dart and change the beginning of the class to:

class ChatPage extends StatelessWidget {
  final String roomId;
  const ChatPage({super.key, required this.roomId});

  static Route<void> route({required String roomId}) {
    return MaterialPageRoute(builder: (context) => ChatPage(roomId: roomId));
  }

We need to pass the roomId to the cubit, so it can listen to messages for only that room. Find the code ChatCubit(context.read<ChatService>())..listenForMessage() and change it to ChatCubit(context.read<ChatService>(), roomId: roomId)..listenForMessage() so the roomId gets passed along.

In lib/chat/chat_cubit.dart change the constructor to:

  ChatCubit(this.service, {required this.roomId}) : super(ChatState.empty());

Then add a field for roomId:

  final String roomId;

Find the submitMessage() method and change the call service.submitMessage(text) to service.submitMessage(roomId: roomId, text: text);.

Open lib/common/chat_service.dart. Change the Future<void> submitMessage(String text) signature in ChatService to:

  Future<void> submitMessage({required String roomId, required String text});

Then replace submitMessage() method in SupabaseChatService with:

  @override
  Future<void> submitMessage({
    required String roomId,
    required String text,
  }) async {
    final myUserId = _supabase.auth.currentUser!.id;
    await _supabase.from('messages').insert({
      'room_id': roomId,
      'profile_id': myUserId,
      'content': text,
    });
  }

Navigate back to lib/chat/chat_cubit.dart and change listenForMessage() to:

  void listenForMessage() {
    service.messageStream(roomId).listen((messages) {
      emit(state.copyWith(messages: messages));
      for (var message in messages) {
        _loadProfileCache(message.profileId);
      }
    }, onError: (e) => state.copyWith(error: e.toString()));
  }

We also need to adapt ChatService to only stream messages for a single room. So open lib/common/chat_service.dart and change the method signature for messageStream() in ChatService abstract class to:

  Stream<List<Message>> messageStream(String roomId);

Replace the implementation of messageStream() in SupabaseChatService with:

  @override
  Stream<List<Message>> messageStream(String roomId) {
    return _supabase
        .from('messages')
        .stream(primaryKey: ['id'])
        .eq('room_id', roomId)
        .order('created_at')
        .map((maps) => maps.map((map) => MessageMapper.fromMap(map)).toList());
  }

Go back to lib/rooms/rooms_page.dart. In the ListTile change onTap to:

onTap: () => Navigator.of(context).push(ChatPage.route(roomId: room.roomId)),

That leaves us with some navigation errors for ChatPage which we will fix next. Instead of going directly to the ChatPage when user is logged in, we will show the RoomsPage. For the files login_page.dart and register_page.dart we should change ChatPage.route() to RoomsPage.route(). Remember to change the imports too.

Then in main.dart, change session == null ? RegisterPage() : ChatPage() to session == null ? RegisterPage() : RoomsPage().

Start a conversation #

The app needs a way to connect with another user to start a conversation.

We will simply provide a way for the user to search for other users by their username, then connect with them to start a conversation. At the database level, starting a conversation means creating a room with the two users as participants.

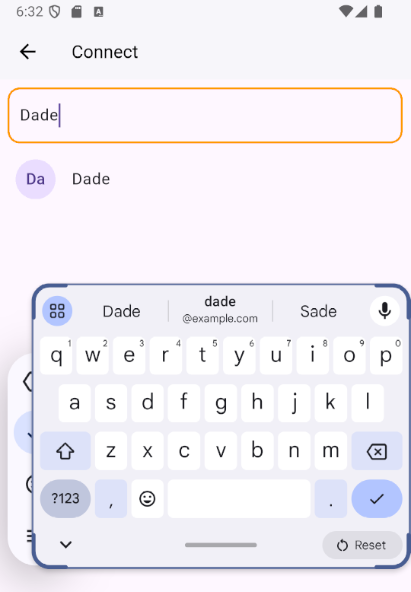

Screenshot of ConnectPage

To implement this functionality we’ll create yet another page using cubit pattern.

Connect state #

Just like with RoomsPage we’ll start by defining the possible state for it.

Create lib/connect/connect_page.dart with:

import 'package:chat/models/profile.dart';

sealed class ConnectState {}

final class ConnectInitial extends ConnectState {}

final class ConnectSearching extends ConnectState {}

final class ConnectResults extends ConnectState {
  final List<Profile> results;

  ConnectResults({required this.results});
}

Connect cubit #

Now for the cubit.

lib/connect/connect_cubit.dart

import 'dart:async';

import 'package:chat/common/chat_service.dart';
import 'package:flutter_bloc/flutter_bloc.dart';

import 'connect_state.dart';

class ConnectCubit extends Cubit<ConnectState> {
  static final Duration delay = Duration(milliseconds: 500);
  Timer? _debounceTimer;
  Future? _searchFuture;
  final ChatService _service;

  ConnectCubit(this._service) : super(ConnectInitial());

  search(String text) {
    _debounceTimer?.cancel();
    _debounceTimer = Timer(delay, () {
      emit(ConnectSearching());
      _searchFuture?.ignore();
      _searchFuture = _service.searchProfile(text);
      _searchFuture!.then(
        (profiles) => emit(ConnectResults(results: profiles)),
      );
    });
  }

  @override
  Future<void> close() {
    _debounceTimer?.cancel();
    _searchFuture?.ignore();
    return super.close();
  }
}

The reason for all the timer stuff, is because we want the app to search for users as we type their username without running a query for each keystroke.

Debouncing is a throttling technique where you delay the execution of a function until after a certain amount of time has passed. It is a way to avoid triggering an action too many times in rapid succession.
The term debounce comes from electronics engineering. When a button is pressed it will sometimes physically bounce a bit of the contact plate, thereby registering as multiple presses. Debouncing is simply making a short delay before another press will be registered.

When search() is invoked it will wait 500 ms before actually hitting the database. If the method is called several times over a very short timespan, then it will cancel the previous delays. Such that it only emits a new state with the result for the last invocation.

If the user wants to find “Alice”, then we don’t want the app to make a new query for each letter that the user types. Instead, we will way for a pause of 500 ms before making a query, which would hopefully mean that the user has finished typing.

There are other ways to implement debouncing. If you want to be really fancy you could use something like RxDart. However, I think it is excessive to add another library just for this small piece of functionality. Therefore, we use a Timer instead.

Connect page #

Time to implement the connect page itself.

lib/connect/connect_page.dart


import 'package:chat/common/chat_service.dart';
import 'package:chat/common/widgets.dart';
import 'package:flutter/material.dart';
import 'package:flutter_bloc/flutter_bloc.dart';

import '../chat/chat_page.dart';
import 'connect_cubit.dart';
import 'connect_state.dart';

class ConnectPage extends StatelessWidget {
  const ConnectPage({super.key});

  static Route<void> route() {
    return MaterialPageRoute(
      builder:
          (context) => BlocProvider<ConnectCubit>(
            create: (context) => ConnectCubit(context.read()),
            child: const ConnectPage(),
          ),
    );
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: Text("Connect")),
      body: Column(
        children: [
          Padding(
            padding: const EdgeInsets.all(8.0),
            child: TextField(
              decoration: InputDecoration(hintText: "Username"),
              onChanged: (text) => context.read<ConnectCubit>().search(text),
            ),
          ),
          Expanded(
            child: BlocBuilder<ConnectCubit, ConnectState>(
              builder: (context, state) {
                return switch (state) {
                  ConnectInitial() => Center(
                    child: Text(
                      "Who do you want to start a conversation with?",
                    ),
                  ),
                  ConnectSearching() => Center(child: Spinner()),
                  ConnectResults() => ListView.builder(
                    itemCount: state.results.length,
                    itemBuilder: (context, index) {
                      final profile = state.results[index];
                      return ListTile(
                        onTap: () async {
                          final roomId = await context
                              .read<ChatService>()
                              .startConversation(profile.id);
                          if (!context.mounted) return;
                          Navigator.of(
                            context,
                          ).pushReplacement(ChatPage.route(roomId: roomId));
                        },
                        leading: CircleAvatar(
                          child: Text(profile.username.substring(0, 2)),
                        ),
                        title: Text(profile.username),
                      );
                    },
                  ),
                };
              },
            ),
          ),
        ],
      ),
    );
  }
}

At the top of the page there will be a TextField where the user can enter the username they want to search for. Under there will be a list of search results. As we are waiting for results it will show a spinner. When the user taps on another user then we call .startConversation() method on provided ChatService. Then navigate to ChatPage for the room that gets created.

How should the user get to the ConnectPage? Well, maybe we should add button for it on RoomsPage.

Open lib/rooms/rooms_page.dart and add a floating action button inside the Scaffold as indicated below.

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('Rooms'), actions: [LogoutButton()]),
      // --- Start of new part ---
      floatingActionButton: FloatingActionButton(
        onPressed: () {
          Navigator.of(context).push(ConnectPage.route());
        },
        child: Icon(Icons.person_add),
      ),
      // --- End of new part ---
      body: BlocBuilder<RoomsCubit, RoomsState>(
      // ...
      )
    );
  }

Outro #

We are now done creating a simple chat app with Supabase instead of full-blown back-end. There is of course many things that could still be improved. I suggest you take some study all the code you wrote paying attention to how it all fits together. Do you have ideas for improvements? See if you can turn your ideas into code, as that would be an excellent exercise.

You could also implement some of the Chat - Challenges.

Reveal solution

Go to source
