Widgets tests #

You’ve seen how you can test functions and methods. This section will build on that to show you how to test widgets.

Headless UI #

When you write widget tests, you are programmatically interacting with your apps UI (or part of it), in a headless manner. Headless in computing means something configured to operate without a direct display and input (screen and keyboard, mouse or touch).

With widget testing, you write code to interact with widgets and to observe the result. It can feel a bit like being blindfolded, in that you can’t directly observe what the app looks like at each statement of your test code. I find that most automated UI testing is like that, and it can be a bit frustrating at times. So there are some pointers on how to debug your tests towards the end of the chapter.

Dependency #

To write widget tests you will need to have the flutter_test package specified as a development dependency. Since any real app should have tests, the Flutter team have been kind enough to add it to the project template used when running flutter create app.

Open up pubspec.yaml for any of the previous projects and see if you can find the following lines:

dev_dependencies:
  flutter_test:
    sdk: flutter

So, you don’t have to do anything to include the dependency. It’s just already there. I guess it is nice enough to know how it is set up.

Render widgets #

For widget tests, instead of test() you need to use the testWidgets() method.

The example might not function correctly. I’m reaching the limit of what can be done with these embedded code examples.

If you are unable to run it here, try pasting the code into Android Studio.

The first argument is a description, just like test() method. The second argument is a bit different. For test() it is dynamic Function(). And for testWidgets() it is Future<void> Function(WidgetTester widgetTester). The difference is that testWidgets() takes an async function with a single parameter (WidgetTester) as 2nd argument. We can use the parameter (WidgetTester) to interact with a widget tree. But remember, always await on each interaction.

Before we can interact with the widget tree though, we need to inflate it. Remember that there are 3 trees in Flutter (widgets, elements and render-objects). We need the trees to be instantiated somehow. That process is called inflating the widget. Normally you would do that with runApp(), but for tests we use WidgetTester.pumpWidget() instead. We can make it build/render another frame by calling WidgetTester.pump(). There is also WidgetTester.pumpAndSettle() which rebuilds until there are no more changes, making it useful for when you need to wait for animations to finish.

Finder #

To write widget tests, we need to be able to programmatically interact with widgets, so that we can verify the interaction had the desired effect. To accomplish this we need a way to locate/find specific widgets.

We can do that with find which is a constant instance of CommonFinders. It has a bunch of methods to help us navigate the widget tree, so we can find and interact with specific widgets.

Click on the links to see example usage.

That is just some of the finder methods. A full list can be found here.

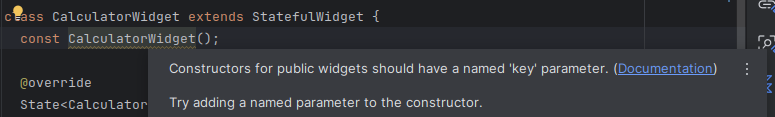

The find.byKey method needs a bit more explanation. You have probably noticed that Android Studio warns you that constructors should have a key parameter.

Widgets can be given a key. We can then use the key reference a specific widget in the widget tree.

Keys also have another use. They can be used to ensure that a StatefulWidget maintain state when the widget is placed at different branch in the widget tree across a rebuild.

Learn more about keys

Some of the find methods can be combined with others. Here is an example:

find.descendant(
  of: find.byType(CalculatorDisplay),
  matching: find.byKey(
    ValueKey('input'),
  ),
)

You can both use finders to find widgets in the widget tree, to interact with and to locate widgets for your tests assertions. Test assertion meaning what you expect the app to do based on the interaction.

Interactions #

To write any meaningful widget test, we need to simulate interactions with the app. Common interactions for mobile apps are:

1. Tap on something
2. Scroll around
3. Drag/swipe
4. Enter text in a field

We can use WidgetTester to simulate these interactions.

Tap #

Tapping is pretty simple. You just call tap method on WidgetTester with a finder for the widget you want to tap on as argument.

Say you have an app that change the text shown when a button is tapped.

Code

Here is how you could write a test for it.

testWidgets('Tapping "OK" provides feedback', (tester) async {
  // Inflate the widget tree
  await tester.pumpWidget(const MaterialApp(home: TapWidget()));

  // Tap the button.
  await tester.tap(find.widgetWithText(FloatingActionButton, "OK"));

  // Rebuild the widget after the state has changed.
  await tester.pump();

  // Expect to find the item on screen.
  expect(find.text('Button was tapped'), findsOneWidget);
});

Code

There are also a couple of variations of tap that you can explore for yourself. These are tapAt and tapOnText.

Scroll #

Scrolling is also just a method on WidgetTester. We don’t need to calculate how much to scroll to find a particular item, we can just use scrollUntilVisible.

Say you have an app with a ListView widget containing 1000 items.

Code

You could write a test that scroll until some item is visible like this:

testWidgets('Scrolling reveals additional tiles', (tester) async {
  // Inflate the widget tree
  await tester.pumpWidget(const MaterialApp(home: ScrollWidget()));

  final listFinder = find.byType(Scrollable);
  final itemFinder = find.text("No 50");

  // Scroll until the item to be found appears.
  await tester.scrollUntilVisible(itemFinder, 200.0, scrollable: listFinder);

  // Verify that the item contains the correct text.
  expect(itemFinder, findsOneWidget);
});

However, looking for certain text is not always the best. Your app could have multiple widgets with the text “No 50”.

In many cases it is better to give the widget a Key, so you can find it based on the key instead.

testWidgets('Scrolling reveals additional tiles (by key)', (tester) async {
  // Inflate the widget tree
  await tester.pumpWidget(const MaterialApp(home: ScrollWidget()));

  final listFinder = find.byType(Scrollable);
  final itemFinder = find.byKey(const ValueKey('key_for_item_50'));

  // Scroll until the item to be found appears.
  await tester.scrollUntilVisible(itemFinder, 200.0, scrollable: listFinder);

  // Verify that the item contains the correct text.
  expect(itemFinder, findsOneWidget);
});

Code

Drag #

Dragging/swiping gestures can be used for several things. One example is swipe to dismiss.

Say you have an app with a to-do list.

Source

You can write a test to dismiss an item like this:

testWidgets('Remove a todo', (tester) async {
  // Inflate the widget tree
  await tester.pumpWidget(const MaterialApp(home: DragWidget()));

  const todoText = "Clean room";

  // Swipe the item to dismiss it.
  await tester.drag(
    find.widgetWithText(Dismissible, todoText),
    const Offset(500, 0),
  );

  // Build the widget until the dismiss animation ends.
  await tester.pumpAndSettle();

  // Ensure that the item is no longer on screen.
  expect(find.text(todoText), findsNothing);
});

Code

Text #

Many apps got text fields. They are used in forms, for search etc.

Say you have an app where you can enter a name to make it show a greeting.

Code

You could write a test for it like this:

testWidgets("Entering a name shows a greeting", (tester) async {
  // Inflate the widget tree
  await tester.pumpWidget(MaterialApp(home: TextExampleWidget()));

  // Enter "Bob" into the TextField
  await tester.enterText(find.byType(TextField), "Bob");

  // Trigger a rebuild
  await tester.pump();

  // Expect to find a greeting for Bob.
  expect(find.text("Hello Bob"), findsOneWidget);
});

Code

Debugging #

Printing #

You can of course use the good old print() function for outputting messages to help you debug. The problem is that it will also print when you release the app. If used extensively it has a slight performance overhead. Another issue is that you could end up having the app unintentionally output sensitive information such as API keys, or other secret. Also, on some platforms excessive calls to print() might be truncated.

To avoid the aforementioned issues it is better to use the following:

if (kDebugMode) debugPrint("Your message");

Debugger #

Having if (kDebugMode) debugPrint("It worked!") sprinkled all over the application is pretty ugly. It is much cleaner and even more useful to use the debugger that is build into Android Studio instead.

Just click on the line number for where you want to pause execution of the app. A 🔴 will appear.

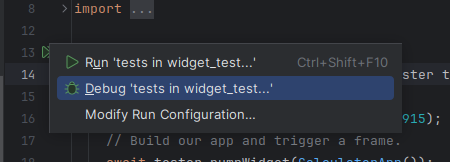

Now, right-click on a test and choose debug.

Or if you want to interact directly with the app then you can just run it using the 🪲 button.

Conditional debugger #

It is sometimes really useful to only pause for debugging when a certain condition is met.

// At the top of the file
import 'dart:developer' as developer;

// Where you want to Conditionally debug
developer.debugger(when: <some condition>);

Here is an example.

Remember to remove developer.debugger() when you are done. Otherwise, it will seem like the app just hangs.

Screen size #

By default, widget tests are run on a screen size of 800x600 which is a strange resolution for a phone. It can create issues if your app is only meant to run in portrait mode.

You can change the default size by adding the following code:

tester.view.devicePixelRatio = 1;
tester.view.physicalSize = Size(412, 915);

Feel free to adjust the size as you see fit.
